                Features:












	Thelux
LED Highbay light fixtures bring parking area illumination into the 21st
century. Our patented optics maximize light distribution and placement with
exceptional, low-glare illumination on the intended area, while minimizing
light trespass into nearby homes and businesses.

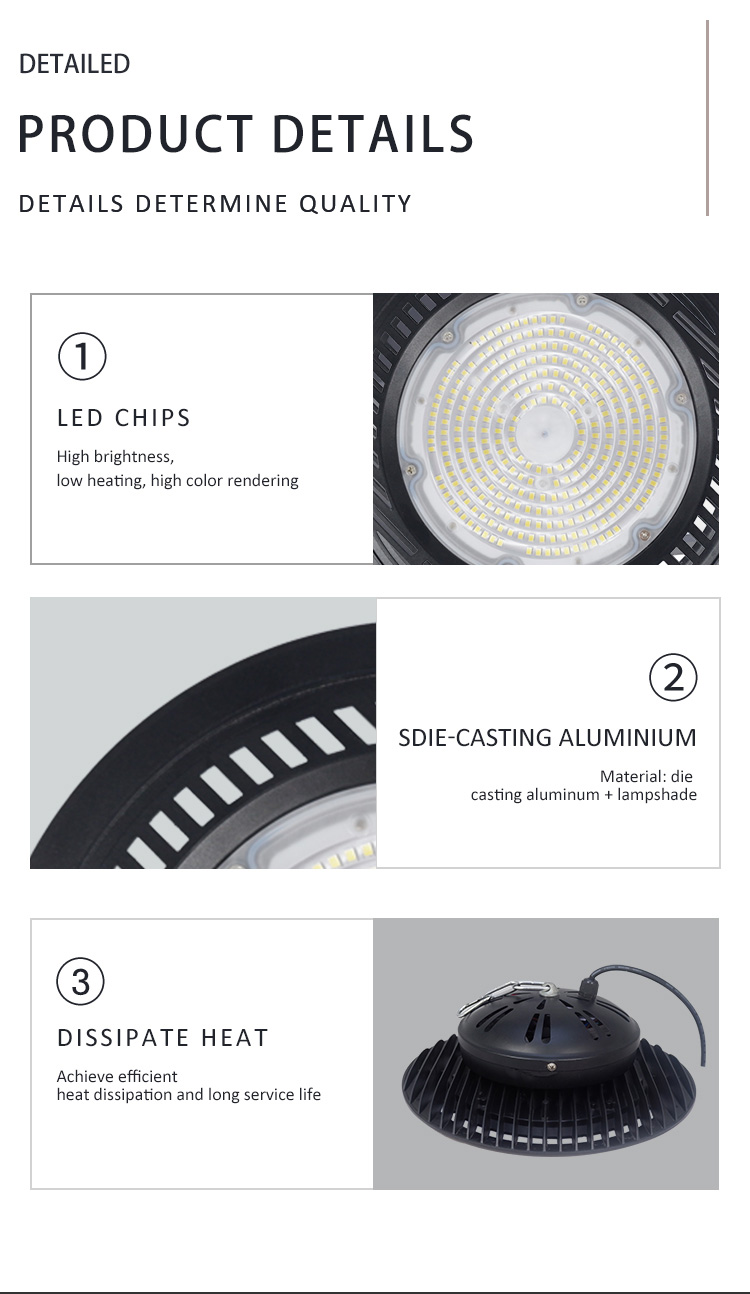

	1.Die casting -aluminium housing with corrosion resistant and
rust resistant power coated finish. And with IP66 protection, they can work
fine in terrible outdoor environments.
2.Adjustable angle bracket, easy to find a suitable mounting angle.
3. High lumen 3030or 5050LED chip of Philips, OSRAM, CREE, BRIDGELUX, and
Epistar. No UV or infrared. Higher light efficiency and more stable.




                 Technical Specifications:

                | Mod No. | Voltage | Power | Size | Light out | Efficency | CRI | Beam angle | Light Source | Driver | CCT | ||
| V | W | mm | lm | lm/W | Ra≥ | ° | type | Chip QTY | Isolate? | PF> | K | |
| TSL-HL010/100 | AC85-265V | 100 | dia. 291*H156 | 14000 | 140-150 | 70 | 90 | SMD 2835 | 300 PCS | Isolated | 0.95 | 2700-7000 |
| TSL-HL010/150 | AC85-265V | 150 | dia. 335*H165 | 21000 | 140-150 | 70 | 90 | SMD 2835 | 450 PCS | Isolated | 0.95 | 2700-7000 |
| TSL-HL010/200 | AC85-265V | 200 | dia. 380*H173 | 28000 | 140-150 | 70 | 90 | SMD 2835 | 600 PCS | Isolated | 0.95 | 2700-7000 |
