Features:
Thelux

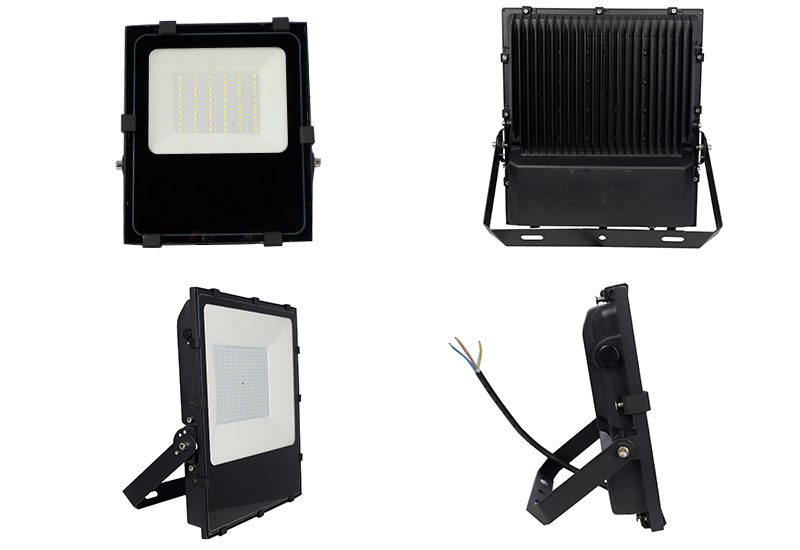

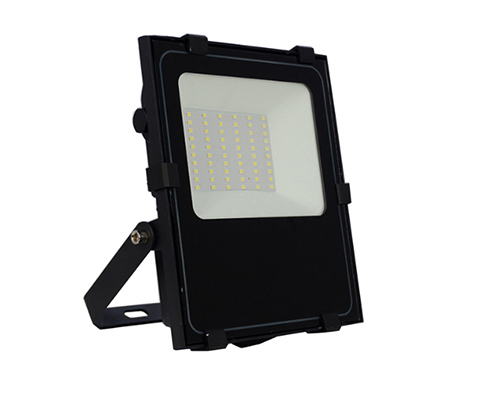

LED Flood light fixtures bring parking area illumination into the 21st century.
Our patented optics maximize light distribution and placement with exceptional,
low-glare illumination on the intended area, while minimizing light trespass
into nearby homes and businesses.
1.Die casting -aluminium housing with corrosion resistant and
rust resistant power coated finish. And with IP66 protection, they can work
fine in terrible outdoor environments.
2.Adjustable angle bracket, easy to find a suitable mounting angle.

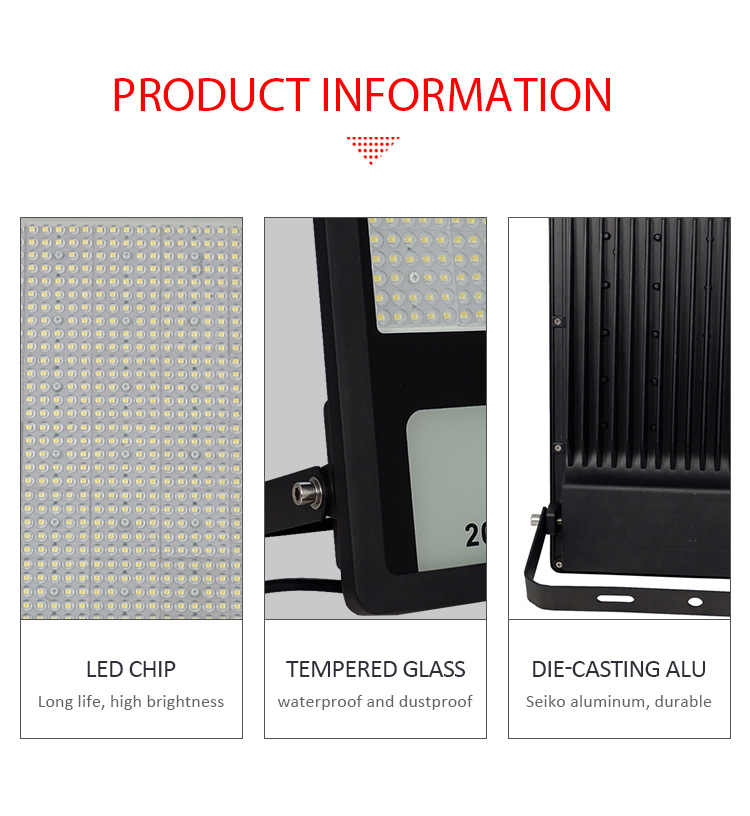

3. High lumen 3030or 5050LED chip of Philips, OSRAM, CREE, BRIDGELUX, and
Epistar. No UV or infrared. Higher light efficiency and more stable.
Technical Specifications:
| Mod No. | Voltage | Power | Size | Light out | Efficency | CRI | Beam angle | Light Source | Driver | CCT | ||
| V | W | MM | lm | lm/W | Ra≥ | ° | Type | Chip QTY | Isolate | PF＞ | K | |
| TSL-FL011/50 | AC85-265V | 50 | 185*45*230 | 4500 | 90-100 | 70 | 120 | SMD 2835 | 60 PCS | Isolated | 0.9 | 2700-7000 |
| TSL-FL011/100 | AC85-265V | 100 | 245*55*295 | 9000 | 90-100 | 70 | 120 | SMD 2835 | 120 PCS | Isolated | 0.9 | 2700-7000 |
| TSL-FL011/150 | AC85-265V | 150 | 275*60*330 | 13500 | 90-100 | 70 | 120 | SMD 2835 | 180 PCS | Isolated | 0.9 | 2700-7000 |
| TSL-FL011/200 | AC85-265V | 200 | 330*65*380 | 18000 | 90-100 | 70 | 120 | SMD 2835 | 240 PCS | Isolated | 0.9 | 2700-7000 |
| TSL-FL011/300 | AC85-265V | 300 | 395*65*440 | 27000 | 90-100 | 70 | 120 | SMD 2835 | 360 PCS | Isolated | 0.9 | 2700-7000 |
